2400MHz To 2500MHz 2.4ghz Panel Antenna 18dbi Wireless Lan Antenna

Brand Name : XJS

Model Number : TDP-2425-18

Certification : ROHS CE

Place of Origin : Guangdong, China

MOQ : 20

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000+PCS+month

Freq. Range : 2400-2500 MHz

Gain : 18dBi

H Beamwidth : 20°

V Beamwidth : 20°

Polarization : Vertical

F/B Ratio : 25dB

VSWR : ≤1.5

Impedance : 50Ω

Connector : N-female

Dimensions : 306 x 306 x 30mm

Contact Now

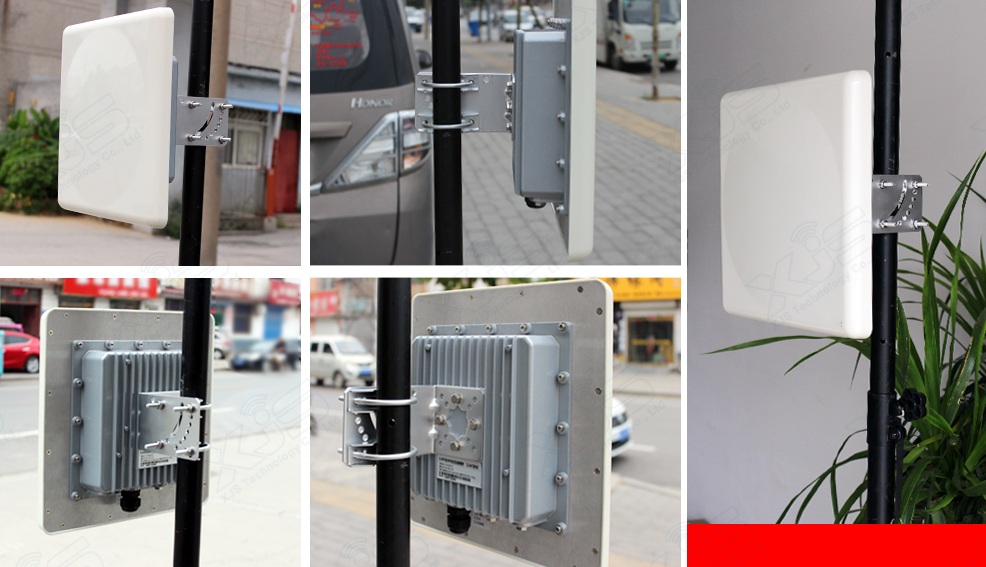

2.4GHz 18dBi panel antenna with radio enclosure

Panel Enclosure Antennas are high performance directional panel antennas suitable for indoor and outdoor applications in the 2.4GHz band allowing the integration of the customer's electronic equipment inside.

The weatherproof aluminum die-casting enclosure provides an enclosed space to mount radios, amplifiers, and other electronic equipment directly behind the panel antenna. Standoffs are provided to help mount equipment securely into the equipment bay.

Features

Heavy duty all weather radome
Can be mounted for horizontal or vertical polarization
DC ground lightning protection
Includes tilt and swivel mast mount
N-Female connector

Application

2.4 GHz Indoor/Outdoor Wireless LAN systems
Subscriber sites and CPE applications
Supports IEEE 802.11b/g/n applications
WiFi and 2.4 GHz wireless video systems
Public wireless hotspots

Electrical Specifications

Frequency Range	2400-2500 MHz
Gain (dBi)	18 dBi
Horizontal Beamwidth	20°
Vertical Beamwidth	20°
VSWR	<1.5
Polarization	Vertical
F/B Ratio	≥25db
Impedance	50Ω

Mechanical Specifications

Connector	N-female
Dimensions	306 x 306 x 30mm
Weight (Kg)	2.6 kg
Lightning Protection	Dc Ground
Rated Wind Speed	126/ms
Mounting Type	Pole Mount
Suitable pole diameter	Ф30-80mm

2400MHz To 2500MHz 2.4ghz Panel Antenna 18dbi Wireless Lan Antenna

Enclosure Specification

Outer Dimension:	22022060mm
Inner Dimension:	19019050mm
Number of ports:	4
Max Port size:	21mm

2400MHz To 2500MHz 2.4ghz Panel Antenna 18dbi Wireless Lan Antenna
